One plant on two boxes

A plant can run on more than one machine against one PostgreSQL. Kill either machine and the plant keeps going: the dashboard answers on the other machine's address, the machines keep being read, production is booked once, and a person signed in on one is signed in on the other.

The decision behind this, and what it deliberately does not do, is 0042.

The words

A plant is its database. Everything a plant knows is in there, which is why the thing that decides who may write is in there too.

A node is one supervisor and its children, started by fsmes plant <name> run --node <id>. Every node serves the API, so every node can answer a browser. Nodes are equal; none of them is the primary.

Three roles run on exactly one node at a time:

Role	What it is	On a real plant
reader	everything run-opc-agent does: reading the machines, booking counts, the order-code downlink, the connection rows	yes
floor	the simulated floor	no — a simulated plant only
housekeeping	the hourly tag-history prune	yes

A node holds a role by holding its lease: one row in plant_leases, renewed every third of lease_seconds. A node that holds nothing is a standby — it serves the dashboard and waits.

Turning it on

In the plant's pack:

[serve]
# Both nodes must sign sessions with the same key, or a person signed in
# on one is a stranger on the other. The pack names the variable; the
# variable holds the secret.
secret_key_env = "MES_PLANT_SECRET"

[storage]
database_url          = "postgresql+psycopg://[email protected]/kc1"
database_password_file = "/etc/fsmes/kc1-password"

[redundancy]
enabled       = true
lease_seconds = 10

Then the schema, once, from any one box — run serves a plant, it does not create one, and a node whose database has no lease table stands by and says so with this command in it:

fsmes plant kc1 init          # or `fsmes plant kc1 migrate` on an existing plant

Then on each box, with MES_PLANT_SECRET set to the same value:

fsmes plant kc1 run --node box-one
fsmes plant kc1 run --node box-two

Starting both nodes at once is safe: run migrates nothing. And if you do run the schema command on both boxes at the same time, that is safe too — the first one into the database holds the migration lock while the second waits for it and finds the head.

A new database starts with nobody in it. A plant moved onto a PostgreSQL of its own gets the schema and the pack's master data, and its accounts are a separate thing: a book built from nothing has none, and every sign-in answers invalid credentials until somebody makes one. The commands above — fsmes plant kc1 init and fsmes plant kc1 migrate — make them, and so do fsmes fleet create and (since 0.4.0) fsmes fleet apply when it finds a book with no account in it at all. fsmes fleet apply on a plant that has accounts leaves them alone: it is not the command that brings back one you deleted on purpose. One account by hand is fsmes add-user.

On a simulated plant this is the failure you will actually meet, because the floor signs in before anybody does: could not sign in … why=this plant answered and refused the credentials, so there is likely no FLOOR-SIM account in its book. That line names the commands that fix it.

--node names the node. Give it a name you will recognise in a log at 02:00 — the host name is the usual answer. Without --node a node calls itself <host>:<port>.

Two nodes on one box

Two boxes is the point of all this. Two nodes on one box is the cheap way to see it work before you own the second box — and it is how the lab on the author's desk runs — so a pack may name the nodes that run on this machine:

[serve]
api_host     = "127.0.0.1"
api_port     = 8010          # the plant's address: one of its nodes serves here
secret_key_env = "MES_BOTTLING_SECRET"

[[serve.nodes]]
id       = "a"
api_port = 8010

[[serve.nodes]]
id       = "b"
api_port = 8011

[redundancy]
enabled       = true
lease_seconds = 6

Then the fleet commands act on every node the pack names:

fsmes fleet start bottling           # the machines, then node a and node b
fsmes fleet status bottling          # 2 nodes, 2 answered, and what each one holds
fsmes fleet stop bottling --node b   # stops node b; node a and the machines keep going
fsmes fleet stop bottling            # stops both nodes, then the machines

The machines belong to the plant, not to a node. On a simulated pack — the bottling lab, fsmes demo — fsmes fleet start starts the one OPC replay both nodes read, before either node, and fsmes fleet stop stops it after both. There is one of it, shared, like the database: a replay started inside a node would die with that node, and the surviving reader would see the line start over from the beginning, which reads as a PLC reset and books nothing. It is left alone when it is already playing — both when this installation's own pid file still names it and when anything else already answers on the endpoint the pack names — so fsmes fleet start is safe to type at a plant with one node down, and a replay you started by hand, or the one docker compose owns, is never stopped by fsmes fleet stop. It writes its log under logs/bottling/machines/.

On a plant whose pack says simulate = false there is nothing here to start: its machine layer is a PLC somebody else runs, and the nodes are two readers of it (A real plant below).

fsmes fleet stop <plant> --node <id> is a graceful stop of one node — it is asked, then told, and it lets go of its leases on the way out. It is for taking a box down on purpose, and it is not the proof that the plant survives a box dying: that proof is a kill, which is what scripts/kill-a-node.sh does and what the measurements below were taken from. A node the pack does not name is refused by name, with the nodes it does have.

Each node keeps its own pid file and its own log directory (logs/bottling/a/, logs/bottling/b/), so stopping the plant stops both and a failover is readable in one node's log without the other's lines in it. fsmes fleet start on a plant with one node already up starts only the one that is down, which is what you want after killing one on purpose.

What fsmes pack check refuses here, so that you find it before half a plant is running: two nodes sharing a port (one of them would fail to bind and the plant would look healthy on the other), two nodes sharing a name (they would take each other's lease and both believe they hold it), nodes named by a pack whose [redundancy] is off (both would read the machines and book every count twice), and nodes with no secret_key_env between them (whoever signed in on one would be signed out the moment the other answered).

A plant that names no nodes is the ordinary plant on one address. That is almost every plant, and nothing above changes it.

Two nodes on one box, on Windows. A Windows job in CI (two-nodes-on-windows) starts the PostgreSQL the runner image ships, writes the two-node pack above, and then types the three commands a person would: fsmes pack check, fsmes fleet create, fsmes fleet start. It checks that both nodes answer /health under their own names, that each of the three roles is held by exactly one node, that both nodes say the same thing about who holds what — the holders are in the database they share — that fsmes fleet status names both, and that fsmes fleet stop stops both and leaves neither port answering.

What is not proven on Windows is the kill. Popen.terminate() there does not go through the plant's own shutdown handler, so a node killed on Windows stops by a different mechanism than a node killed on Linux, and the takeover that follows is a different thing to measure. The lease, the takeover in lease units and the counters that must not be booked twice are proven on Linux — the postgres job's two-node test, the two-nodes-in-compose job, and a run by hand on the author's box. So: starting, answering, holding and stopping two nodes is proven on both platforms; surviving a kill is proven on Linux only, and nobody should read the Windows job as more than that.

A real plant: the reader is its own service

fsmes plant <name> run serves the API. On a plant whose pack says simulate = false it has always served only the API — the reader that subscribes to your OPC server is a service of its own (connecting read-only), and on a redundant plant you run one per box:

MES_REDUNDANCY=true MES_NODE_ID=box-one MES_LEASE_SECONDS=10 fsmes run-opc-agent

fsmes plant run reads the pack's [redundancy] block and hands it to its own children; a service you start by hand reads the same three settings from its environment. Give MES_NODE_ID the name you gave --node, so the lease row, the log and the dashboard agree about which box is which.

Both boxes run an agent. Both wait on the lease; the one holding it reads the machines and books, the other books nothing until the holder stops renewing. A simulated plant — the bottling lab, fsmes demo — starts its reader inside the node, so for those the two commands above are the whole thing.

Two nodes on one box, for a rehearsal, differ by port as well:

fsmes plant kc1 run --node a --api-port 8111
fsmes plant kc1 run --node b --api-port 8112

Each node writes its logs in its own directory under the plant's, so two nodes on one box never append to one file.

What it refuses, and why

• A SQLite URL. A file database cannot be shared by two boxes. The single-box SQLite demo is unchanged and needs none of this.
• A signing key nothing set. [redundancy] with no secret_key_env, or with a variable that is not set in the environment that starts the plant, refuses to start in one sentence. The lab's own default key is refused too: it is a convenience for a demo, and two boxes agreeing by luck is not redundancy.
• lease_seconds under 2. A lease shorter than the time a busy box can take to renew one is a plant that fails over because it was busy.

Run it with docker compose

If you would rather see it than read about it, there is a compose file that is one plant on two nodes: one PostgreSQL, one machine layer, two nodes of the lab's bottling plant, and nginx in front of them so there is one address.

docker compose -f docker/docker-compose.redundant.yml up --build   # 1
# open http://localhost:8000/dashboard                             # 2
docker compose -f docker/docker-compose.redundant.yml kill node-a  # 3
docker compose -f docker/docker-compose.redundant.yml start node-a # 4

What you see:

1. Four or five minutes the first time, while the image builds and the line's replay data is generated. Then the log settles into two nodes talking to one database, and one of them saying it took the three roles.
2. The dashboard, on one address, with the header saying served by a · machines read by a. The counts move while you read it. Sign in as ADMIN / admin.
3. A power cut, as far as the plant is concerned: kill sends no shutdown and waits for nothing. Leave the page open and do not reload it. Within about a lease the header says served by b · machines read by b and the counts carry on from where they were — not from zero, because the counter baselines the dead node left behind are in the database. You are not asked to sign in again: both nodes sign sessions with the same key.
4. Node a comes back as a standby. It serves the dashboard again and holds nothing, because b is holding the roles and a node that comes back does not take work off a node that is doing it.

One command does all four and checks every claim in them:

bash scripts/kill-a-node.sh

It prints the takeover in lease units with the bound beside it, how many requests the one address refused while a node died (it should be none), what each machine booked against what its counters moved, and how many readings were stored twice (it should be none). It is a shell script because everything in it is docker compose and SQL; the MES itself knows nothing about containers. The same script runs on every pull request in the two-nodes-in-compose job, so this page cannot quietly stop being true.

When you are done: docker compose -f docker/docker-compose.redundant.yml down -v throws the containers and the data away.

Two things about this compose file worth knowing before you copy it:

• The machine layer is one service, shared. A simulated OPC server started by a node would die with that node, and the surviving reader would see the replay restart from the beginning — which reads as a PLC reset, so nothing would be booked. A real plant has one PLC and points both nodes at it; that is what this file imitates. It is also why a redundant plant's nodes never start run-opc-sim themselves.
• The pack is the lab's bottling line with three things changed, in docker/redundant/plant.toml: a PostgreSQL URL, a secret_key_env, and [redundancy] enabled = true. Nothing else about the plant differs. The other compose file, docker/docker-compose.yml, is untouched and is a different demo: one plant, N stateless API replicas, one of everything else.

Seeing which node is which

/health carries a node block: the node's name, whether it was named or is calling itself after its host and port, lease_seconds, the roles this node holds, and who holds each role.

fsmes plant kc1 status --api-port 8112 prints the same as a line a person can read:

  kc1          healthy            supervisor       http://127.0.0.1:8112
               ACME Beverages / Kansas City
               node b, holding floor, housekeeping

The dashboard says it in its header: served by b · machines read by a. If the line says machines read by nobody yet, no node holds the reader lease — which is what you see in the seconds after a failover, and what you would see if the database were unreachable from every node. The header follows a failover on the page's own poll — within five seconds, with no reload — so a page left open on a phone shows the takeover as it happens.

The fleet console shows a plant whose pack names its nodes once, with its nodes under it: how many there are and how many answered, then one line each saying where that node is and what it holds in words — reads the machines, runs the floor, prunes the history, or nothing yet for a standby. A node that did not answer is unknown there and never a node holding nothing. Its fleet.json carries the same, node by node, for anything else that wants to read it.

A plant with nodes is also read at whichever node answers. The address in its pack is one node of it, so when that is the node that died, the console and fsmes fleet status ask another one and fill the row from there — the plant is answering, because it is. The silent node is still named as silent on its own line underneath. The node that answered has to be the same plant: it is asked the same ownership question as the first address, and a port answering as something else is refused rather than believed.

fsmes fleet stop and fsmes fleet apply ask every node for the same reason. Both act on a running plant and refuse one that has gone silent, and a plant whose first node is the one that died is a plant that is running — stop is the verb a person reaches for next. When no node answers at all, the refusal counts the pid file each node writes, not one file a plant with nodes never has, and says how many it read.

What a failover costs

One lease, plus a renewal interval to notice, plus whatever the new holder needs to connect to the machines. With lease_seconds = 10 that is on the order of fifteen seconds in which no counts are booked — and then they are all booked, because the counters are absolute and the baseline the dead node left behind is in the database, committed in the same transaction as the booking it belongs to. Nothing in the gap is lost; it arrives late.

Measured on a developer's machine on 2026-10-15, two bottling nodes against one PostgreSQL with lease_seconds = 4 and the line replayed at 6x: the reader role moved 1.00 lease units after its holder was terminated and the floor role 1.19, and production booked across both failovers equalled the counters' own movement exactly, per machine. Your numbers will differ; the shape will not.

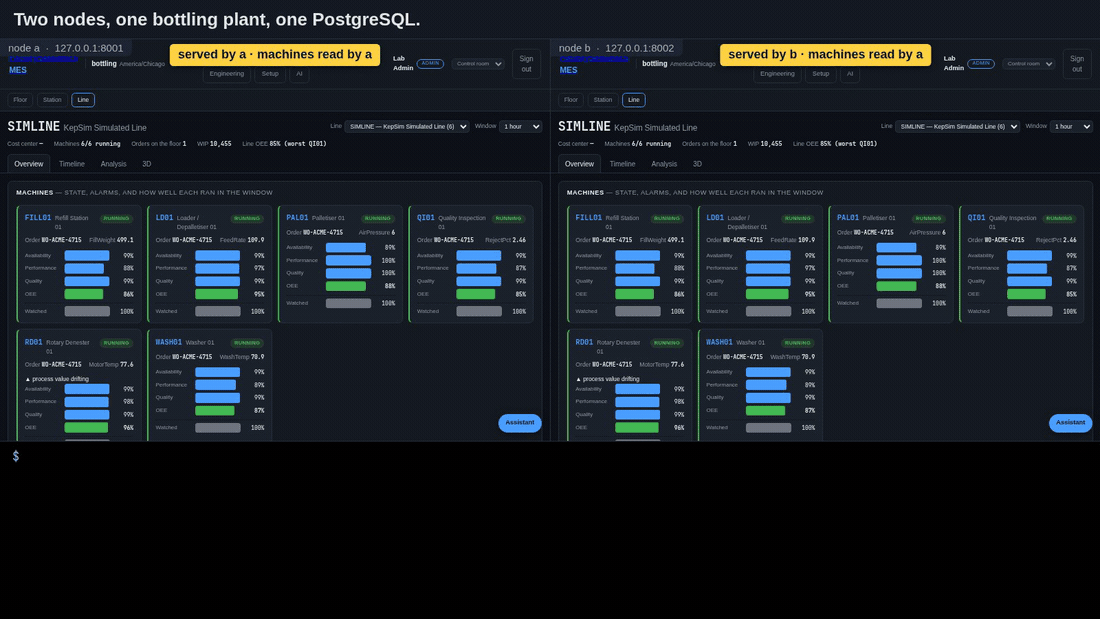

Or watch it cost something. One plant as two nodes side by side, each on its own address, and a real docker kill on the one holding the machines:

Node a held the machines and was killed; node b was reading them 6.6 seconds later; node a answered again 1.2 seconds after docker start, holding nothing. Two things in it are staged and nothing else is: the yellow line is the dashboard's own header line, enlarged so it can be read at this size, and the grey "no answer" panel is drawn by the recorder over a page that is really greying itself and saying "reconnecting". The seconds are the ones measured on the machine it was recorded on, and they are printed by the script that records it: bash scripts/record-kill-a-node.sh from a checkout makes the whole thing again, so the picture can be of the version you are running rather than of the day it was first made. (The same minute as an mp4, if a loop is distracting.)

One thing in it is worth reading twice. For the few seconds between the kill and the takeover the machine cards go idle and the line reads 0/6 running, and then they are all running again. That is this being a simulated plant: the floor that moves those machines is itself one of the jobs held by a lease, so it stops while its lease moves, exactly as the reader does. On a real plant the machines are machines and do not pause — what pauses is the MES reading them, and the counters are absolute, so the units made in the gap are booked when the new holder catches up rather than lost.

A node that comes back comes back as a standby. It does not take a role the other node is holding.

What this does not do

• The front door is yours. Two nodes are two addresses. Give people one of them with a DNS name they can repoint, a floating address, or a proxy — nginx in front of both nodes, as docker/docker-compose.redundant.yml does. This product does not pick for you.
• The database is not made redundant by this. One PostgreSQL is one PostgreSQL. Its own standby, its own backups and its own failover are PostgreSQL's job, and well-documented there. See Backups for what this product expects you to keep.
• The PLC write path is single by design. Writing a setpoint back to a machine runs under the reader's lease and goes no further. Write-back is not a built feature of this product.
• ERP sync, the UNS publisher and the inbound watchers are still single by assumption. They are separate commands; run one of each. They take the same lease when they are made redundant.
• A conversation on the AI tab starts over after a failover. The thread lives in the process that started it. What was asked and what was answered is in the database; the thread is not.

If it goes wrong

What you see	What it means
Both nodes say standby and nobody holds the reader	No node can write to the database. Look at the database, not at the nodes.
A node exits at start with one sentence about MES_SECRET_KEY	secret_key_env names a variable that is not set in the environment that started the plant.
A node exits at start with one sentence about MES_DATABASE_URL	[redundancy] with a SQLite URL.
The dashboard says machines read by a node that is gone	The lease has not expired yet. Wait lease_seconds.
Counts stop and do not resume	Check the surviving node's log for standby: another node holds this role — if it says that forever, the dead node's lease is being renewed by something, which means the node is not actually dead.
